At EPACK Prefab, we design and manufacture modular clean room systems to create ultra-controlled environments where hygiene and precision are critical. Our clean room solutions ensure strict control over airflow, temperature, humidity, pressure, and particulate filtration, providing a contamination-free environment that meets the most demanding industry standards.
EPACK Prefab offers end-to-end clean room infrastructure solutions, including:
Each component is designed for seamless assembly, ensuring maximum cleanliness, durability, and compliance.
Note: EPACK Prefab provides the structural and architectural provisions for HVAC and filtration systems, ensuring seamless integration with client-supplied or third-party mechanical equipment.
| Specification | Details |
|---|---|
| Core Material Options | PUF / PIR Insulated Foam Core |
| Panel Thickness | 30mm, 40mm, 50mm, 60mm (custom options available) |
| Sheet Thickness | 0.5mm to 0.8mm Pre-Painted Galvanized Steel (PPGI) / Stainless Steel / Galvalume |
| Finish Options | Plain / Embossed / Antistatic Coating |
| Density | 40 ± 2 kg/m³ |
| Fire Rating | Class 1 / Class 0 (Fire-Retardant PIR Core) |
| Thermal Conductivity (K-Value) | 0.023 W/m•K |
| Joint Type | Tongue & Groove / Camlock for Air-Tight Assembly |
| Panel Width | 1000mm to 1200mm |
| Installation | Vertical / Horizontal Mounting with Flush Joints |
The cleanliness level of a clean room is determined by the number and size of airborne particles present per cubic meter of air.EPACK clean rooms comply with international classification systems, including:• ISO 14644-1 (Global Standard)• US Federal Standard 209E• GMP / WHO Guidelines (for pharmaceutical and biotech sectors)
| ISO Class | Maximum Particles ≥ 0.5µm / m³ | Typical Application |
|---|---|---|
| ISO Class 5 | 3,520 | Microelectronics / Semiconductor |
| ISO Class 6 | 35,200 | Pharmaceutical / Biotech Labs |
| ISO Class 7 | 352,000 | Hospital Labs / Food Processing |
| ISO Class 8 | 3,520,000 | Packaging / General Production |

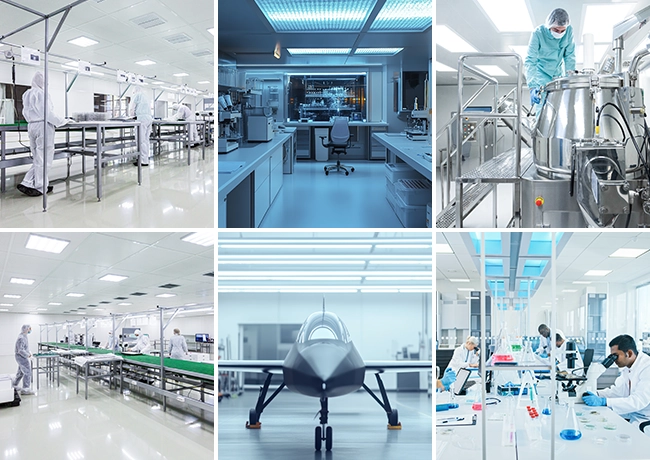

Our modular clean room systems are ideal for:
Looking for a custom-built clean room for your facility?
Contact EPACK Prefab for expert consultation and turnkey solutions.
📧 enquiry@epack.in
📞 +91-8130444466
A clean room is a precision-controlled environment built to maintain extremely low levels of airborne particles, contaminants, and pollutants. Perfect for high-precision manufacturing and laboratory use, clean rooms ensure product quality by tightly regulating airflow, particle levels, temperature, humidity, and pressure.
ISO cleanrooms are classified by the cleanliness of their air. In the USA’s Federal Standard 209, the number of particles 0.5 microns or larger per cubic foot of air is measured to determine the cleanroom’s class.
There are two main types of cleanrooms: turbulently ventilated (non-unidirectional) and unidirectional flow. Both types can be prefabricated.
The cost of a modular cleanroom in India can range from less than 7,000 INR to more than 70,000 INR per square foot. EPACK Prefab offers competitive pricing with free-standing walls and fully load-bearing ceilings.
EPACK Prefab is a leading manufacturer of modular cleanroom systems, providing design, manufacturing, and installation to meet unique requirements.
A common cleanroom classification in India is ISO 7, which allows less than 352,000 particles >0.5 microns per cubic meter and requires 60 HEPA filtered air changes per hour. The equivalent FED standard is class 10,000.
Pharmaceutical cleanrooms are divided into groups based on the number of particles that are present in the air in a cubic meter. Such a classification helps make sure that the environment of these rooms meets pharmaceutical standards.
Common ISO cleanroom classes for pharmaceuticals are ISO 7 and ISO 8, equivalent to Class 10,000 and Class 100,000 in the old Federal Standard 209E.
Ceiling coverage in a cleanroom is the percentage of the ceiling area that has HEPA (high-efficiency particulate air) and ULPA (ultra-low penetration air) filters. For an ISO Class 1 cleanroom, which is the cleanest, recommended air changes per hour are 500–750, with ceiling coverage of 80–100%.
A cleanroom in the pharma industry is a controlled environment. Here, the supply, distribution, and filtration of air are monitored. These rooms are important for pharmaceutical products because they filter out dust, microbes, and many other pollutants.
