❄️ Cold Storage Panels – Engineered for Extreme Temperature Control

EPACK Cold Storage Panels are specially designed to build large, high-performance refrigeration structures inside PEB or RCC buildings. Manufactured using continuous and discontinuous panel lines, these panels provide long-term durability, excellent thermal insulation, and airtight construction – essential for maintaining optimal temperatures in cold storage environments.

Get A Quote
Cold Storage Panels Ideal Use Cases

🏭 Ideal Use Cases

  • Frozen & Chilled Food Warehouses

  • Pharmaceutical Cold Chain Units

  • Agro Cold Rooms & Ripening Chambers

  • Ice Cream & Beverage Facilities

  • Multi-chambered Cold Storage Projects

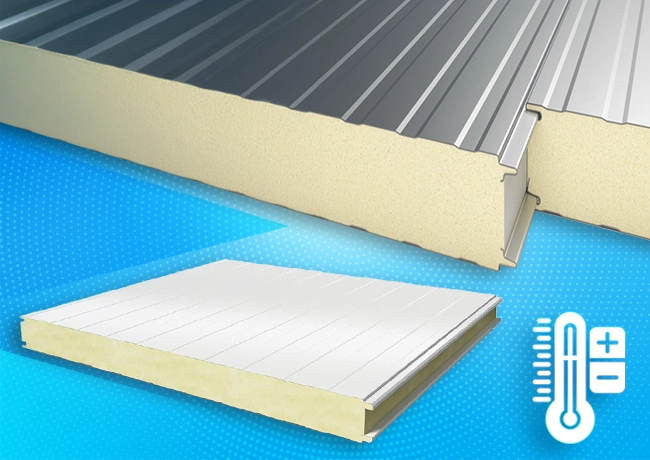

🧱 Panel Specifications for Cold Storage

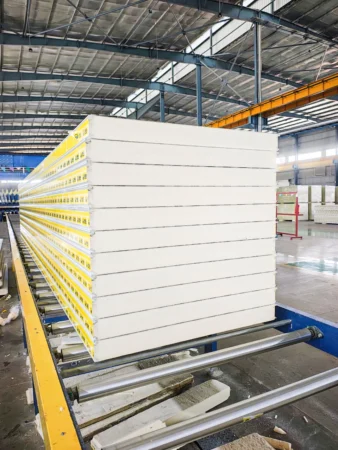

Wall Panel Double Groove

🔷 Wall Panels (Double Groove)

  • Core Options: PIR / PUR

  • Thickness: 60mm / 80mm / 100mm / 120mm / 150mm

  • Width: 1100mm (Also available in 950mm for large orders)

  • Ribbing Types: Standard Rib, Micro Rib

🔷 Ceiling Panels (for below metal roof)

  • Core Options: PIR / PUR

  • Thickness: 60mm / 80mm / 100mm / 120mm

  • Application: Laid below roofing sheet or deck sheet for thermal insulation

✅ Key Features

Cold Storage Panel Key Features

  • Superior Thermal Insulation (K-value: 0.023 W/m·K)

  • Fire Safety – PIR/PUR core is self-extinguishing

  • Airtight Foam-to-Foam Joints

  • Hygienic, Moisture-Resistant Panels

  • Fast & Modular Installation

  • Suitable for Temperature Range: -40°C to +15°C

Rcc Cold Rooms

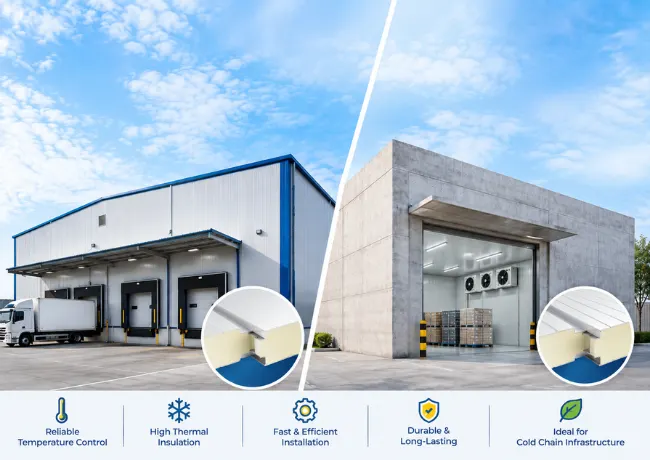

🏗️ Supported Building Types

RCC Cold Rooms – Panel-built inner chamber inside concrete buildings

PEB Cold Storage – Panels installed as envelope in pre-engineered buildings

Common queries

Cold storage panels are used to build insulated structures inside RCC or PEB buildings for food, pharma, and logistics cold chain applications.

Wall panels are available in 60mm, 80mm, 100mm, 120mm, and 150mm. Ceiling panels range from 60mm to 120mm, depending on insulation needs.

We use PIR and PUR cores, which offer low thermal conductivity and superior energy efficiency.

Yes, they are designed to maintain internal temperatures as low as -40°C, ensuring high-performance insulation and airtight sealing.

Ceiling panels are installed below metal roofing or deck sheets using suspension systems or sandwich cladding methods for enhanced insulation.
