EPACK Prefab K-House is a fully engineered modular housing solution built with cold-formed steel frames and insulated sandwich panels, designed for quick installation, reusability, and cost-efficiency.
Unlike traditional buildings, K-Houses can be assembled, disassembled, and relocated multiple times with minimal tools — making them the preferred choice for temporary and semi-permanent accommodation and site infrastructure across India.

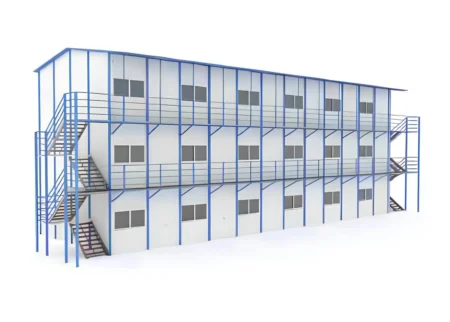

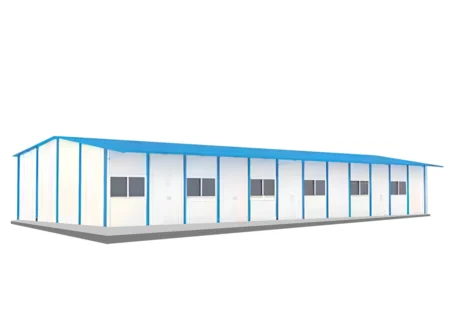

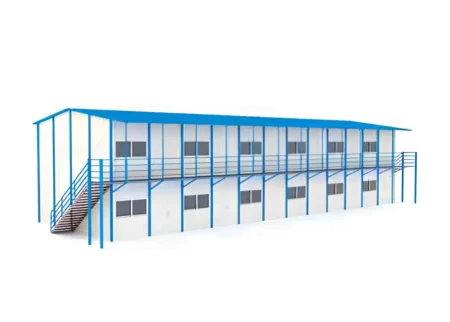

The EPACK K-House is available in three standard configurations, allowing you to scale your temporary structures based on site requirements and capacity needs. Each type is built with the same high-quality, prefabricated modular components for fast and reliable assembly. (1P = 0.97m)
Recyclable & Reusable: All components are standard and factory-fabricated, making the K-House suitable for repeated disassembly and reuse across multiple project sites.
Quick Installation: Built from lightweight materials, the K-House is quick and easy to erect, requiring minimal technical know-how.
Flexible Layout: Doors and windows can be placed in any location, partitions can be set on any horizontal axis, and stairs are configured externally for maximum interior flexibility.
Waterproof Structure: The K-House features an integrated waterproof design, eliminating the need for separate waterproof treatments.
Environmental & Economic: With low energy consumption and a reusable design, the K-House has a minimal environmental impact. Its average annual cost is significantly lower than that of buildings made from other materials.

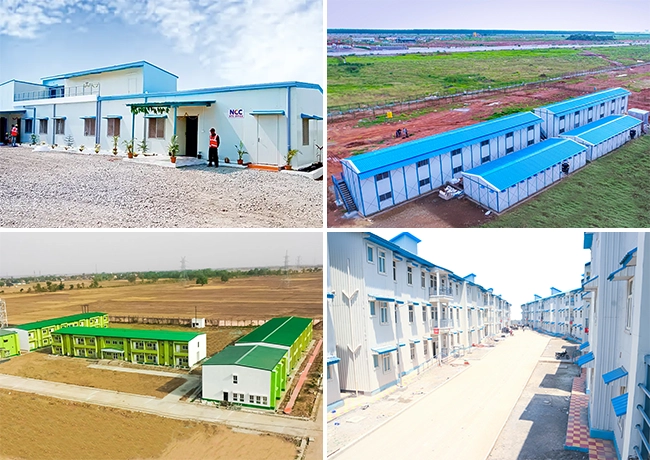

The EPACK PREFAB K-House is widely used for temporary housing and commercial facilities, including:
K-House is a standard EPACK product; no design alterations are possible.
| Component | Technical Specifications |
|---|---|
| Structural Frame | All columns, trusses, beams, and purlins are cold-formed as per IS: 811/RHS sections (IS:4923), finished with one coat of primer and one coat of paint (preferably blue). |
| Walkway & Staircase | 2.40mm thick MS checkered plates, painted with one coat of primer and one coat of black paint. |
| Railings | Fabricated from 40x40x3mm MS angle, finished with one coat of primer and one coat of paint (preferably blue). |
| Hardware | Non-galvanized high-tensile (8.8 grade) hardware for primary members and 4.60 grade for secondary members. |
| Wall & Partition Panels | 50mm thick sandwich panels with an expanded polystyrene core and 0.30mm pre-painted galvanized iron sheets on both sides (RAL-9002 Off-White). |
| Floor Board (for G+1/G+2) | 18mm cement fiber board (EPACK approved make), fixed to the floor beam with M5x30mm SD screws. |
| Floor Mat (Optional) | 1.5mm PVC mat or tiling (optional). |
| Roofing Sheet | 0.40mm pre-painted galvanized trapezoidal metal sheet (Blue). |
| Doors (2100 x 900 mm) | Made from sandwich panels (same color as walls) with stainless steel hinges, D-handles, and an Al-drop/tower bolt. |
| Windows (1740 x 970 mm) | Powder-coated (white) aluminum extruded section with 4mm non-toughened glass. |
| Electrical Fittings | Lights, fans, sockets, and AC points (optional). |
| Toilet / Kitchen | APP membrane and sanitary fittings (optional). |
Note - EPACK K-House Building Area Calculation Table 1K = 1.82m 1P = 0.97m
| K-House Layout | Total Area (sq. m) | No. of Workers |
|---|---|---|
| 8K X 3K X 3P | 100.39 | 35 |
| 12K X 3K X 3P | 150.04 | 50 |
| 18K X 3K X 3P | 224.51 | 80 |
| 18K X 4K X 3P | 284.43 | 100 |
| 18K X 3K X 6P | 459.23 | 160 |
| 18K X 4K X 6P | 579.06 | 200 |
Looking for a durable and relocatable modular housing solution?
Contact EPACK Prefab today for your K-House requirements.
📧 enquiry@epack.in
📞 +91-8130444466
A K-House is a modular prefabricated structure designed for quick assembly, portability, and efficiency, suitable for temporary or permanent use.
They are used for site offices, labor accommodations, classrooms, and temporary shelters.
K-Houses are built with galvanized steel frames and insulated panels for walls and roofs.
Yes, K-Houses are designed for easy dismantling and relocation.
Depending on size, K-Houses can be assembled within days, making them ideal for urgent requirements.
Yes, they are designed to withstand harsh weather conditions and heavy use, ensuring longevity.
Yes, K-Houses can be tailored for specific layouts, features, and functional requirements.
Yes, the insulated panels used in K-Houses help maintain thermal efficiency, reducing energy costs.
With proper maintenance, K-Houses can last over 15-20 years.
Construction, education, healthcare, and disaster relief organizations frequently use K-Houses for their modular needs.
The components are compactly packed for easy transportation and quick on-site assembly.
Yes, the modular design reduces material wastage and minimizes environmental impact.
K-Houses are cost-effective due to reduced labor, materials, and construction time.
Yes, EPACK Prefab ensures all K-Houses meet industry safety and quality standards.
