At EPACK Prefab, we design and manufacture Liftable Porta Cabins (Portable Cabins) that combine strength, flexibility, and efficiency. Built as per IS standards, these cabins feature a robust steel framework and lightweight insulated sandwich panels, ensuring long-lasting performance and comfort for diverse on-site applications.

Each cabin is designed for easy assembly, relocation, and transport, making it an ideal choice for construction sites, offices, accommodation units, and mobile facilities.

Get A Quote
About Epack Liftable Cabins

About EPACK Liftable Cabins

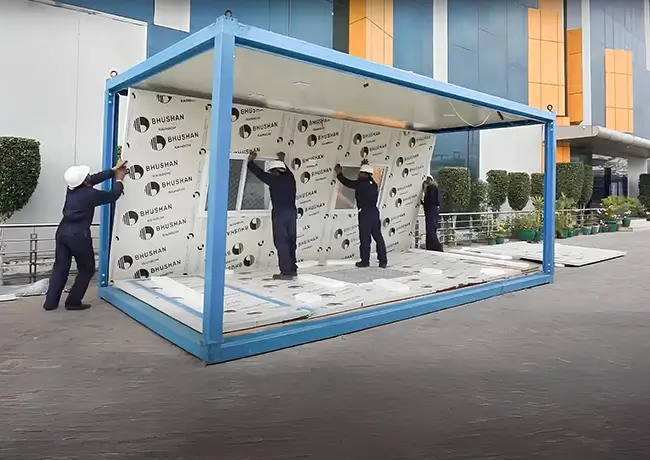

EPACK Prefab’s Liftable Porta Cabins are modular structures built with precision-engineered components including a top frame, bottom frame, four corner posts, and interchangeable wall panels.
All components are bolted together, allowing for quick installation or dismantling — the entire unit can be set up in just two hours.

A standout feature of these cabins is their DIY (Do-It-Yourself) assembly capability — even unskilled workers can install them using basic tools.

Technical Specifications

ComponentTechnical Specifications
MS Steel Framing StructureSpecially formed 3mm thick mild steel frame with primer & synthetic enamel paint; corner sections designed for lifting; color options: Blue / Grey.
Flooring18mm cement particle board on galvanized steel sections; load capacity 150 kg/sqm; PVC mat (1.5mm) in Grey or Plywood finish; underside coated with primer.
Wall & Ceiling Panels50mm insulated sandwich panels with 0.50mm pre-painted galvanized iron sheets on both sides; color options: Off White / Blue.
Secondary RoofingAdditional galvalume sheet roofing with extra insulation layer for complete waterproofing and temperature control.
WindowsPowder-coated aluminum sliding windows (1170x900mm) with glass, grill, and canopy for protection.
DoorsInsulated sandwich panel doors (900x2100mm for main, 600x2100mm for toilet/bath); fitted with SS hinges, lock, closer, and stopper.
Electrical FittingsPre-fitted with lights, fan, 6A socket, and AC point (EPACK-approved electrical make).
AC Cut-Out (Optional)Window AC cut-out available on request at order stage.

Component Overview

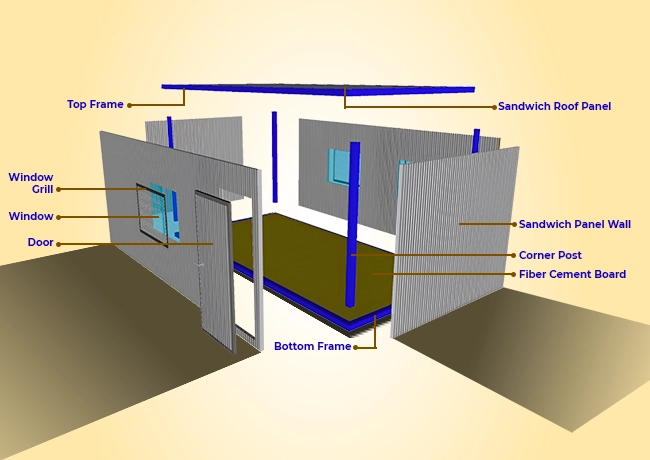

Liftable Cabin Component Overview

Each unit includes:

  • Top Frame
  • Bottom Frame
  • 4 Corner Posts
  • Sandwich Wall Panels
  • Sandwich Roof Panel
  • Door
  • Windows with Grill
  • Fiber Cement Board Flooring

All components are precision-engineered to ensure quick on-site assembly, strong joint connections, and excellent portability.

Installation Process (Approx. 2 Hours)

  1. Bottom Frame Installation – Place and level the base frame.
  2. Corner Post Installation – Securely fix the four vertical posts.
  3. Roof Installation – Lift and attach the roof frame to the posts.
  4. Wall Panel Installation – Fix insulated wall panels between posts.
  5. Electrical Setup – Connect lights, fan, and AC points.
  6. Ready-to-Use Cabin – The structure is now complete and liftable.

👉 Installation can be completed within two hours using a small team — no skilled labor required.

Transportation & Packing

EPACK Liftable Cabins are designed for efficient logistics and cost savings.

  • 4 units can be packed into a 20 ft shipping container.
  • 6 units can be packed into a 40 ft high-cube container, reducing freight cost by up to 75%.
  • Can be transported by road, rail, or sea, depending on site conditions and destination.
  • Each unit is designed for easy handling and reassembly after transport.

Applications of Liftable Porta Cabins

Applications Of Our Modular Solutions

EPACK Liftable Cabins can be used for a wide range of purposes across industries:

  • Site Offices
  • Staff Accommodation Units
  • Marketing Offices
  • Mobile Clinics / Health Camps
  • Labour Accommodation
  • Toilet Blocks / Ablution Units
  • Temporary Classrooms or Relief Shelters

Benefits of EPACK Liftable Cabins

Why Choose Epack's Modular Solutions
  • Fast Assembly: Complete setup within hours, ideal for urgent site needs.
  • Flexible Combination: Modular design allows linking multiple cabins for larger spaces.
  • Multiple Color Options: Customizable finishes to match project or brand requirements.
  • Safe & Durable: Engineered as per IS standards using corrosion-resistant steel and sandwich panels.
  • DIY-Friendly: Can be assembled or dismantled easily with minimal manpower.
  • Relocatable: Designed for easy transportation and reinstallation at new sites.
